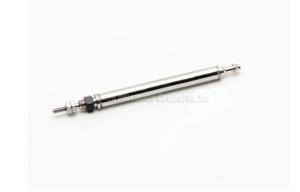

Stainless Steel Single Acting Micro Pen Pneumatic Air Cylinder Bore Size 4mm

Name: Stainless Steel Single Acting Micro Pen Pneumatic Air Cylinder Bore Size 4mm
Brand: FLUIDAC or OEM
Price: 3 USD

Place of Origin : Ningbo China(Mainland)

Brand Name : FLUIDAC or OEM

Certification : ISO9001

Model Number : CJ1B4-15-PU

MOQ : 5 piece

Price : USD3-

Packaging Details : Boxes, Cartons,Wooden cases,Pallets

Delivery Time : Within 20 days after receiving payment or deposit

Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal

Supply Ability : 10000 Pieces Per month

Motion Pattern : Single Acting

Product name : Pneumatic Air Cylinder

Body material : Stainless Steel

Bore : 4mm

PU : TUBE4X2.5，NYLON 4X2.5

Stroke (mm) : 5mm

Contact Now

Stainless Steel Single Acting Micro Pen Pneumatic Air Cylinder Bore Size 4mm
SMC type stainless steel micro pen pneumatic air cylinder single acting Bore size 4mm e.g. CJ1B4-15-PU

Quick Detail:

*SMC interchange stainless steel micro pen shape pneumatic air cyinder

*With bore size dia.4mm,micro shape,high sensitivity in motion

* Single action,spring return

* Stainless steel barrel for anti-corresion and sanitary application

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With self-lubricating bearing,lubrication free

* Adapted PU or soft Nylon tube directly,convenient and fast connecting.

* Bore size 4mm

* Cylinder kits and accessories available

Specifications:

ORDERING CODE
CJ1	B	6	15	PU
CJ1:Standard single action micro cylinder	B: Basic type	Bore size	Stroke	PU: TUBE4X2.5
		4:4mm	5mm
			10mm	PA:NYLON 4X2.5
			15mm
			20mm

SPECIFICATION
Bore size(mm)	4
working Medium	Filtered compressed air
Motion Pattern	Single acting
Pressure Endurance	1.05MPa
Operating pressure range	0.3MPa~0.7MPa
Ambient Temperature	-10~70ºC
Buffer cushioning	NONE
Operating Speed	50~500mm/s
Lubrication	Not required

Stainless Steel Single Acting Micro Pen Pneumatic Air Cylinder Bore Size 4mm
