Hydraulic Lever Type Clamping Cylinder Bore Size 25mm Line Manifold Type

  • 1
  • 2
  • 3

Brand Name : FLUIDAC or OEM

Model Number : RLCK-M50

Place of Origin : Ningbo China(Mainland)

MOQ : 5PCS

Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal

Supply Ability : 5000PCS per Month

Delivery Time : Within 20 days after receiving payment or deposit

Packaging Details : Boxes, Cartons,Wooden cases,Pallets

Material : Carbon steel

Range of Pressure : 10-50kg/cm2

Range of temperature : -10~+60℃

Working medium : Filtered oil

Bore size : φ25~φ63

Acting type : Double acting

Contact Now

RLCK Hydraulic Lever -type Cylinder Bore Size φ25~φ63mm Pmax 70kg/cm2

Hydraulic Lever -type Cylinder Bore Size Φ25~Φ63mm, Pmax 70kg/ cm2 e.g.RLCK-M50

Details:

  • Cylinders and clamping parts are made of carbon steel,smoothness and long service
  • Lightweight design,convenient installation,low cost
  • Standard type, provide multiple modes of using
  • High quality sealing ring,abrasive resistance and air leakage

Ordering Code:

RLCK M 50 R A
Series Type:

Blank: Line type
M: Manifold type
MF: Manifold with flow control
FA: Flange type
FAM: Flange with manifold
FCM: Flange manifold with flow control		 Bore of Cylinder:

25: φ25mm
32:φ32mm
40:φ40mm
50:φ50mm
63:φ63mm		 Direction of choice:

R/L		 A integrated

Specification:

Bore of cylinder (mm) φ25 φ32 φ40 φ50 φ63
Bore of piston (mm) φ18 φ20 φ22.4 φ28 φ35
Stroke (mm) 25 25 30 34 40
Pressure area push (cm2) 2.37/4.91 4.9/8.04 8.63/12.57 13.47/19.63 21.55/31.17
Theoretical clamping 3MPa 116kg 190kg 288kg 453kg 701kg
Fluid Filtered oil
Range of temperature -10~+60℃
Max.operation pressure (kg/cm2) 70kg/cm2
Range of pressure (kg/cm2) 10-50kg/cm2
Acting type Double acting

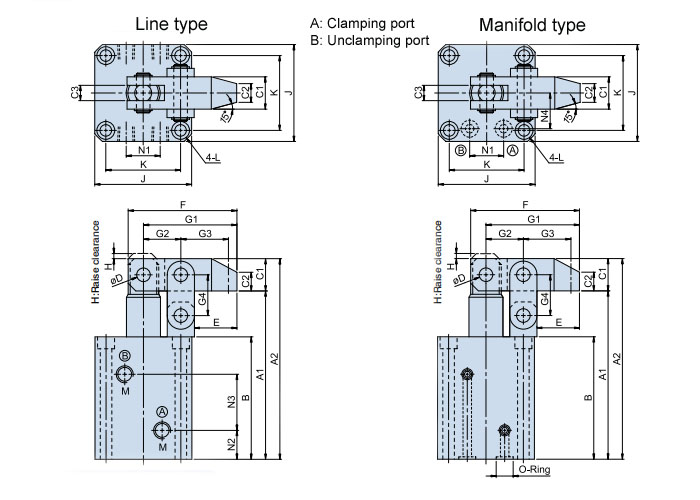

Dimensions:

Hydraulic Lever Type Clamping Cylinder Bore Size 25mm Line Manifold Type

Model RLCK-25
RLCK-M25		 RLCK-32
RLCK-M32		 RLCK-40
RLCK-M40		 RLCK-50
RLCK-M50		 RLCK-63
RLCK-M63
A1 103 112 122 137 155
A2 122 131 144 162 187
B 76 85 90 100 111
C1 19 19 22 25 32
C2 11 11 13 15 19
C3 9 9 10 11 15
φD φ8 φ8 φ10 φ12 φ15
E 25 25 30 35.5 43
F 64 64 77 90 110
G1 55 55 66 77 94
G2 22 22 26 30 36
G3 24 24 29 33 39
H 3 3 4 4 4
J 55 57 69 75 96
K 42 44 52 58 75
L φ6.8-φ10.5*6.5D φ6.8-φ10.5*6.5D φ9-φ14*9D φ9-φ14*9D φ11-φ18*11D
M PT1/8 PT1/8 PT1/4 PT1/4 PT1/4
N1 18 22 26 32 38
N2 17 19 19 21.5 22
N3 33 38 40 45 52
N4 20 22 26 29 38
O-RING P7 P7 P8 P8 P9
Q 61° 61° 61° 61° 66°
T 4 5 5.5 5.5 7.5



Product Tags:

Hydraulic Lever Type Clamping Cylinder



Hydraulic 25mm Line Clamping Cylinder



Manifold Hydraulic Clamping Cylinder
